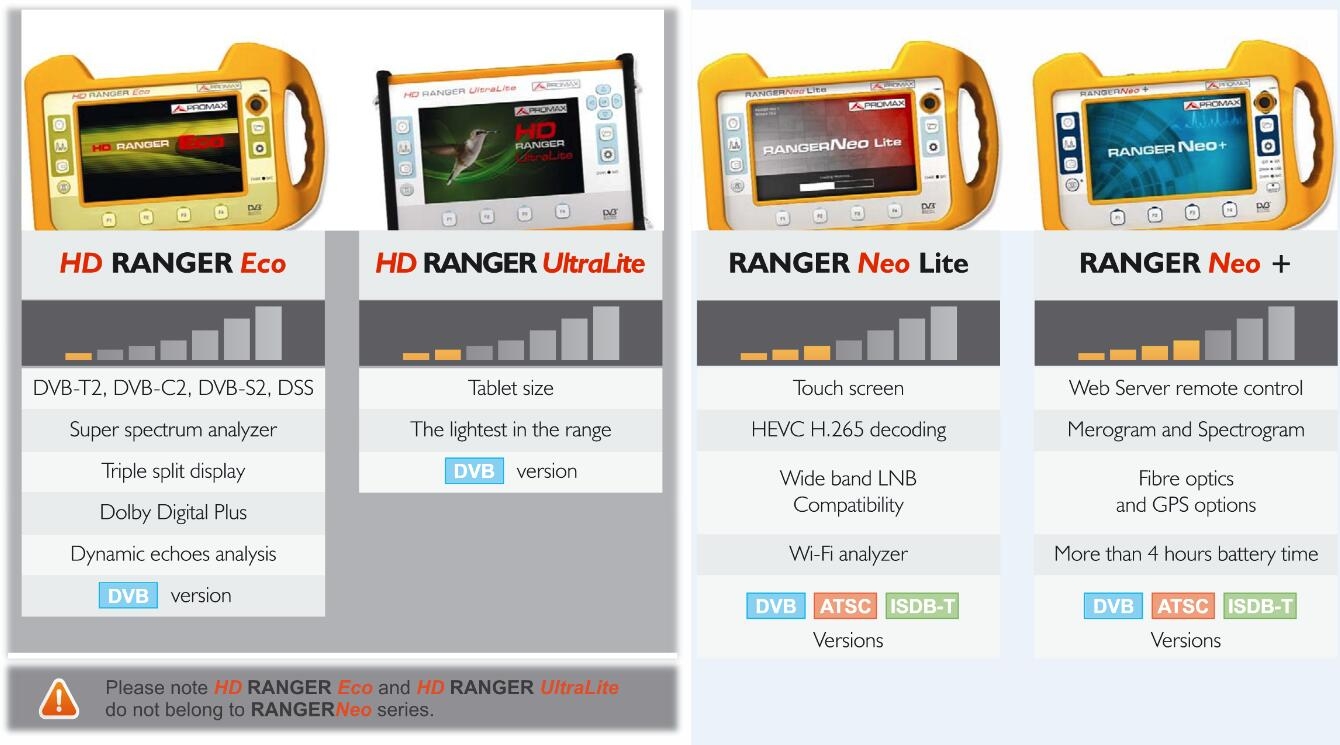

SPECIFICATIONS

RANGERNeo Lite

RANGERNeo +

RANGERNeo 2

RANGERNeo 3

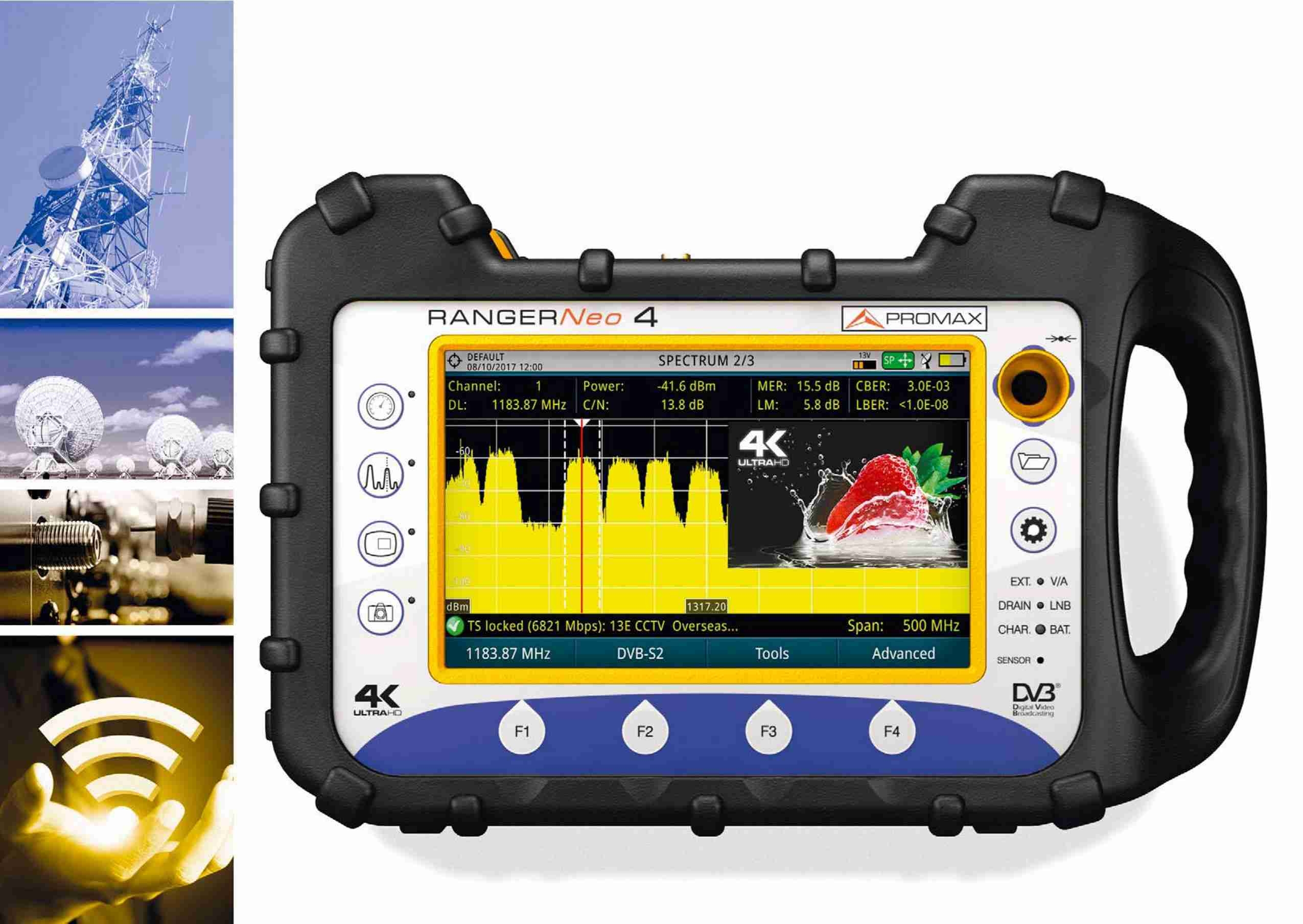

RANGERNeo 4

DIGITAL?BROADCAST STANDARDS

DVB-T/T2, DVB-T2 lite

DVB-C/C2

DVB-S/S2

DVB-S2 Multistream

DSS, ACM / VCM / CCM

... Also includes:

... Also includes:

... Also includes:

DAB, DAB+ (optional)

MPEG-TS

DVB-T2-MI

DAB, DAB+

AUDIO CODECS

MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS

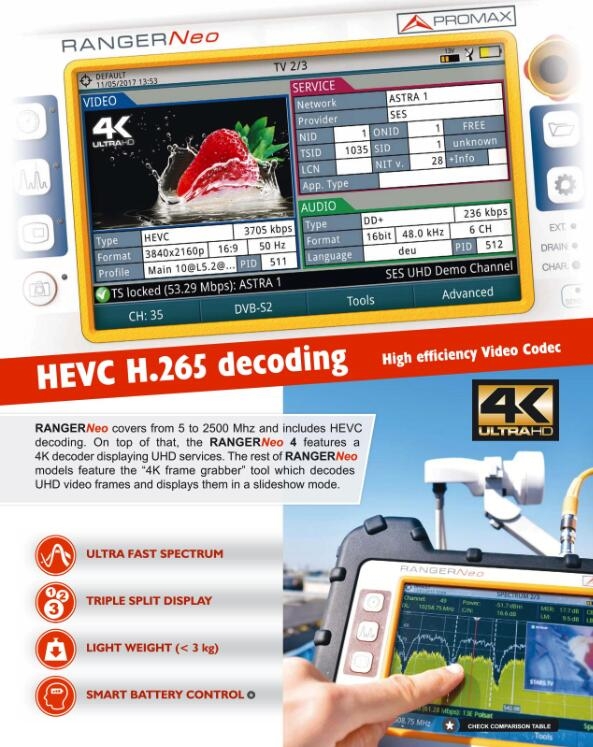

MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS

-Universal RF input 75 Ω

-HDMI output

-IP interface for remote control

-Analogue Video/Audio input

-2xUSB (Type-A) for data transfering

-

-

-

... Also includes:

... Also includes:

ASI-TS input and output

(BNC Female, 75 Ω)

IPTV multicast input

(UDP / RTP, RJ45)

Common Interface slot

-1 pps input

FUNCTIONS

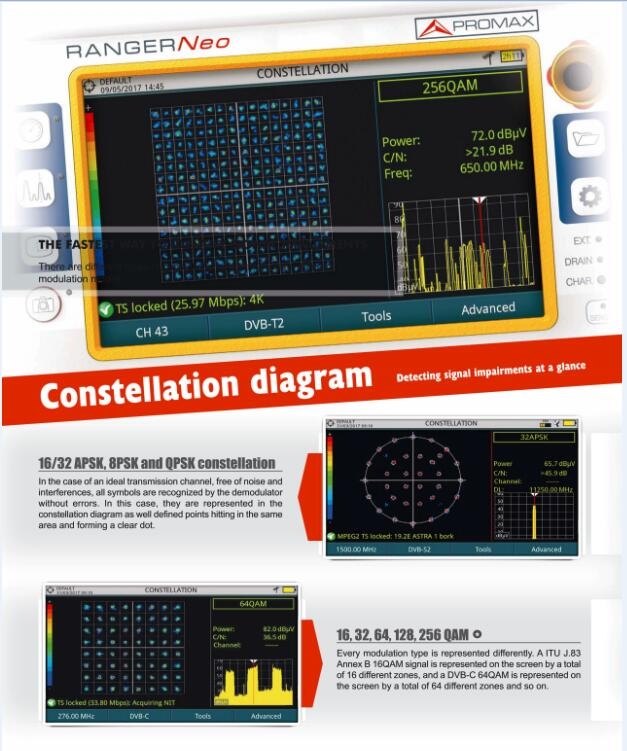

- Constellation diagram

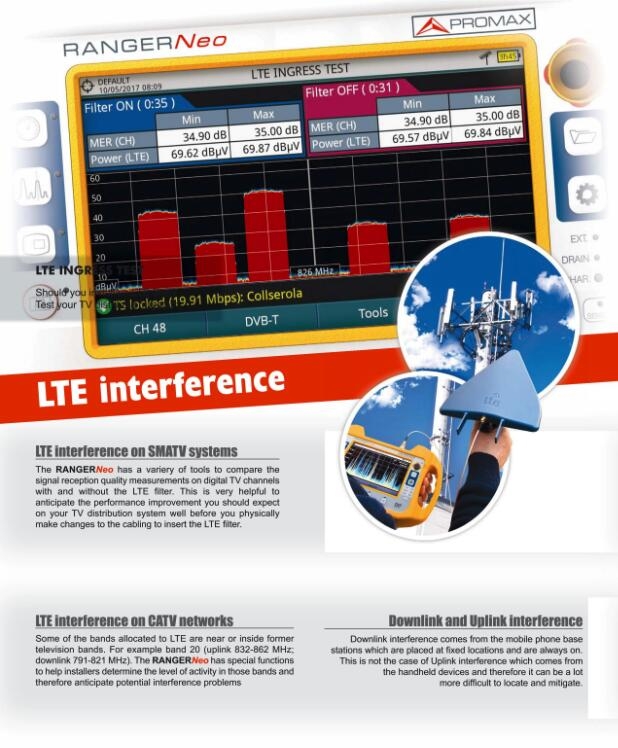

- LTE ingress test

- Dynamic echoes analysis

- StealthID (instant identification of tuning

parameters)

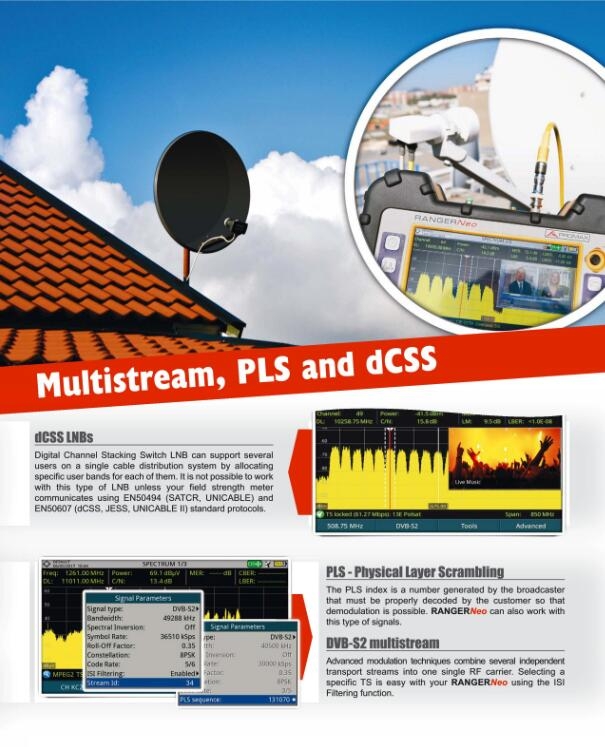

- PLS?(Physical Layer

Scrambling)

- Ultra fast spectrum analyzer

(70 ms sweep time)

- 4K Frame grabber

- MAX and MIN hold

- FM?RDS radio measurement and decoding

- Screenshots and

Datalogger for meas.reports

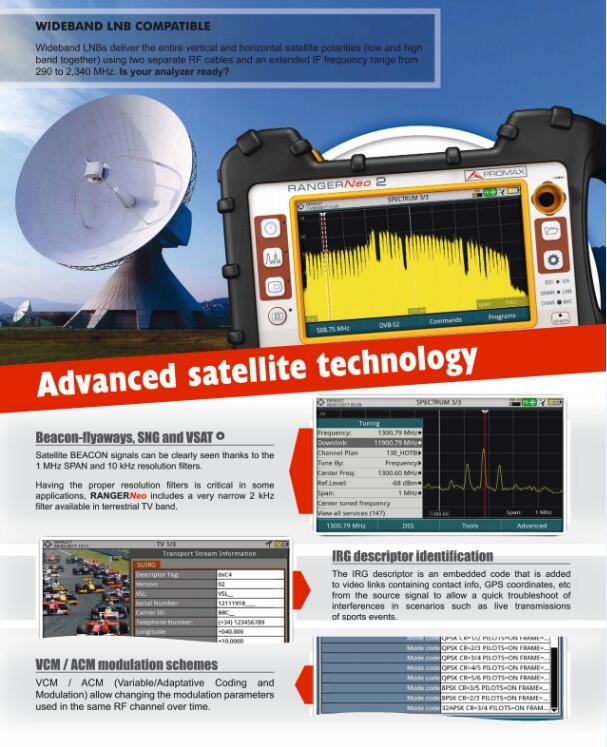

- Beacon-Flyaways SND and VSAT

- Wideband LNB

- WiFi 2.4 GHz

- LTE 1.8 GHz

- OTT

- Service Recording

- Field strength measurement

- Task planner

... Also includes:

-

-

-

... Also includes:

-

-

... Also includes:

... Also includes:

- Merogram

- Spectrogram

- Signal monitoring

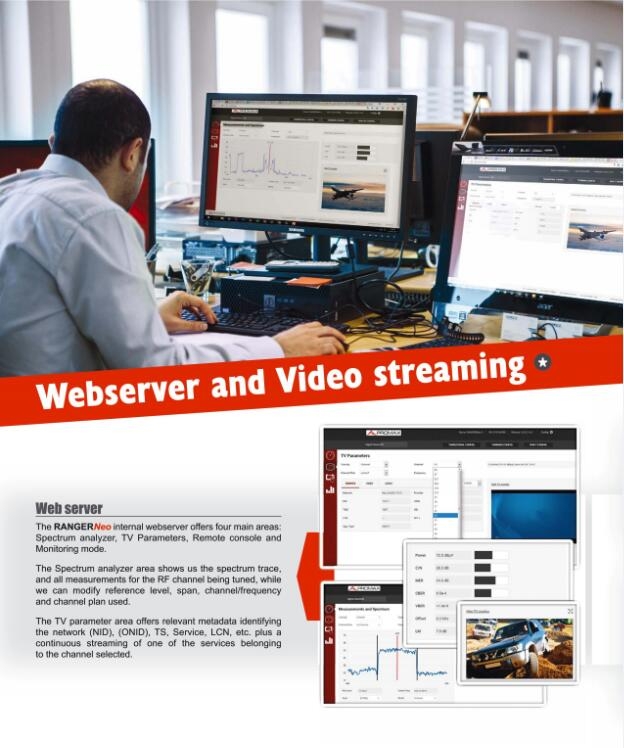

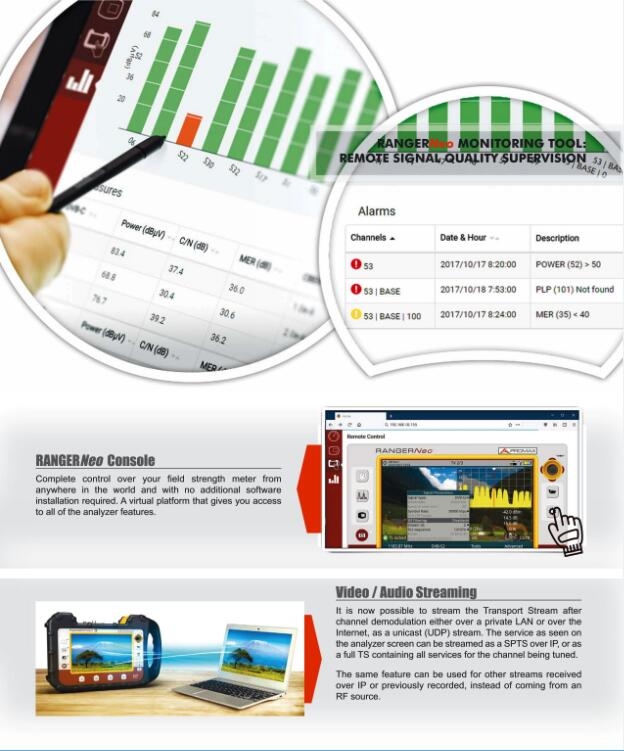

- Remote control (webserver)

- MER by carrier

- GPS coverage analysis

(optional)

- Video/Audio Streaming - SCAN + TILT

TS recording

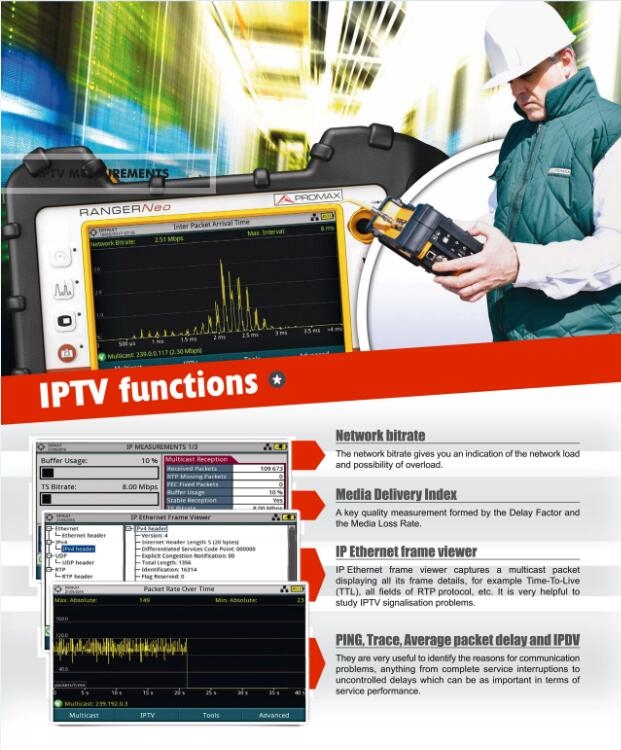

TS?analysis IPTV multicast

measurement and decoding

Shoulder attenuation

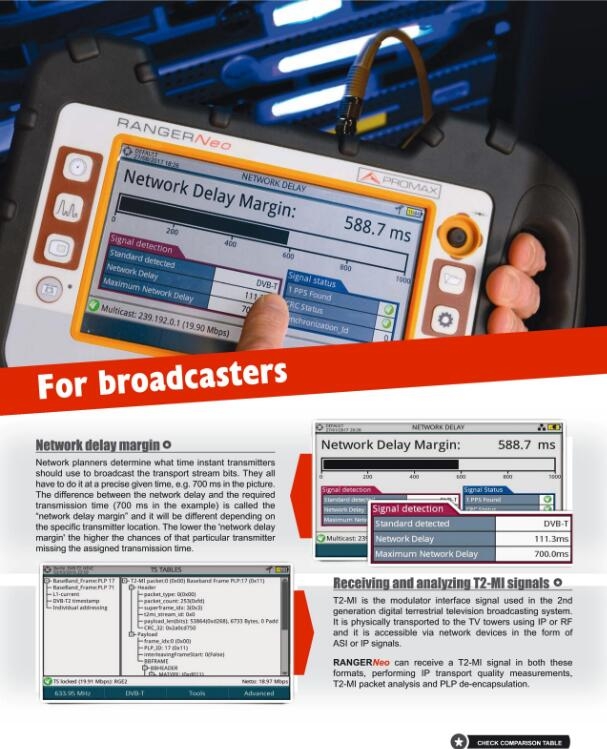

Network delay

DVB-T2-MI analysis

- 4K decoder

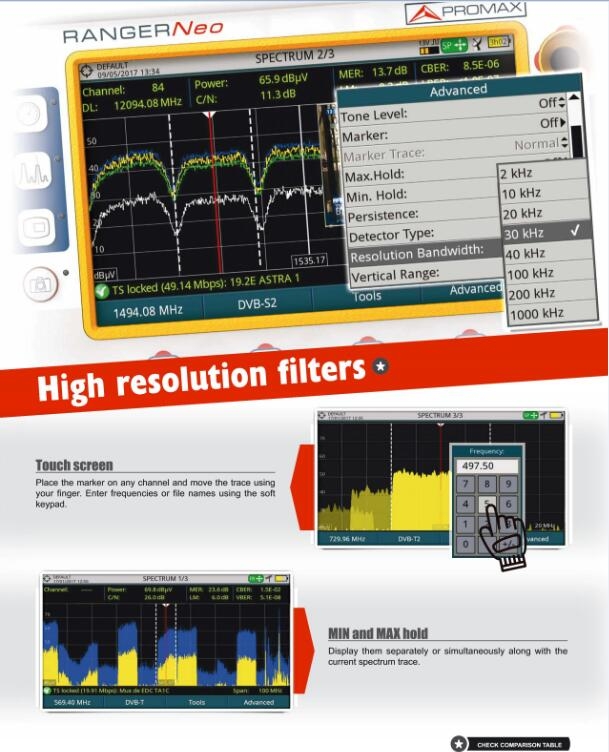

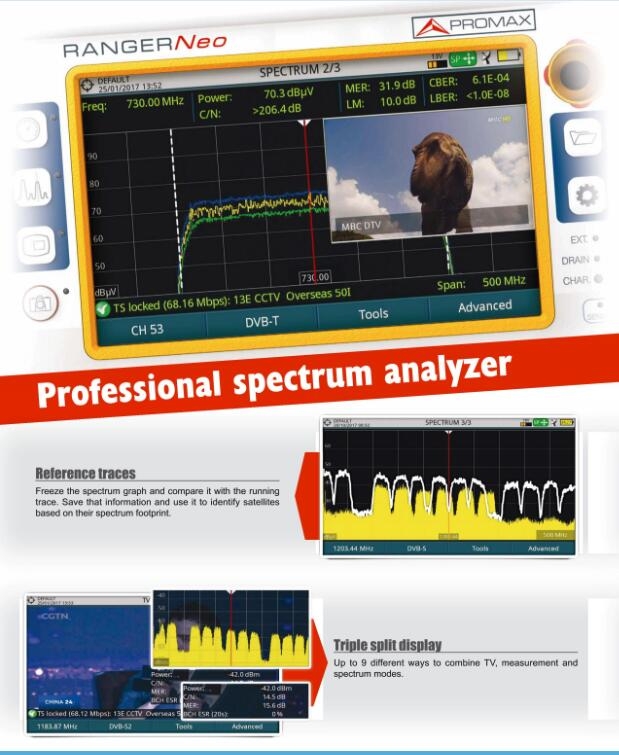

SPECTRUM ANALYZER

Frequency Margin

Measurement range

Span

Resolution bandwidths

From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

From 10 - 130 dBμV

Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

100 kHz

100, 200 kHz 1 MHz

2 kHz (terrestrial)

10, 20, 30, 40, 100, 200 kHz 1 MHz

MEASUREMENT MODE (please refer to STANDARDS section) Frequency Margin

DVB-T?COFDM

DVB-T2 Base and Lite COFDM

DVB-C QAM

DVB-C2 COFDM

PAL, SECAM and NTSC

FM radio

DVB-S QPSK

DVB-S2 QPSK, 8PSK, 16/32APSK

DSS QPSK

From 5 - 1000 MHz (Terrestrial)

From 250 - 2350 MHz (Satellite)

Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets Power (45 to 115 dBμV), BER, MER, C/N, Link margin

Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets M, N, B, G, I, D, K and L

Level measurement

Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE

7 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION

(via ethernet interface)

NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans + Measurement reports and screenshots

GENERAL

Hybrid operation: Touch screen (7”) or conventional keyboard DiSEqC 2.x generator (DiSEqC 1.2 commands implemented) dCSS /?SCD 2 (EN50607) and SATCR/SCD?(EN50494)

BATTERY

> 2h

> 4 h (smart battery)

HARD CASE

Optional

Included

OPTIONS

RANGERNeo +

RANGERNeo 2

RANGERNeo 3

RANGERNeo 4

DAB, DAB+

Available

Available

Included

Included

GPS?Coverage Analysis

Available

Available

Included

Included

Rack assembly

Available

Available

Available

Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

Available

Available

Available

Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

Available

Available

Available

Available
